Waterdrop ED09W Electric Filter Dispenser review

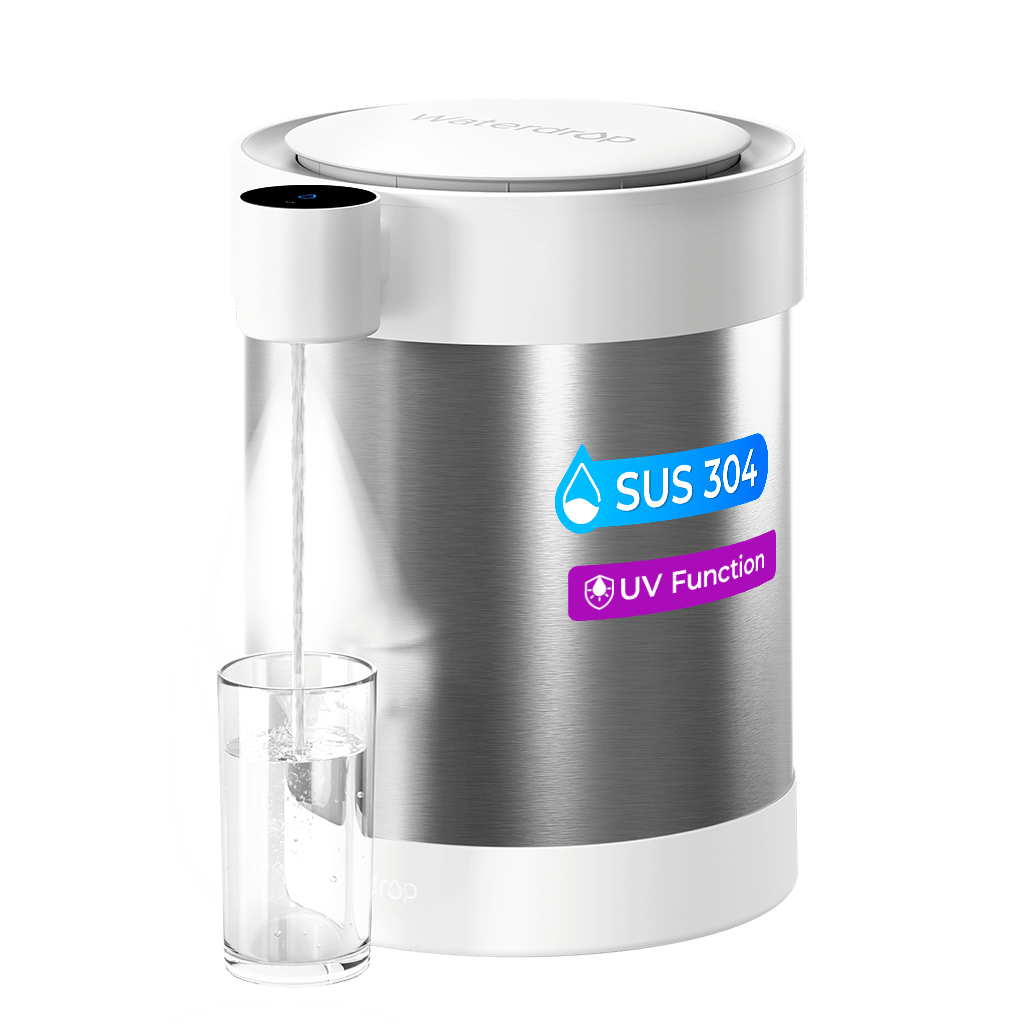

Waterdrop ED09W: a 22-cup electric dispenser with a maker-listed UV feature

WD-ED09W is a manually filled, rechargeable countertop dispenser that Waterdrop also lists among its electric pitchers. Its model-specific user manual and detailed product copy identify a 22-cup (5.3 L) tank, even though a feed tag says 20 cups. The 22-cup listing is usable for capacity matching; it is not a promise of that much ready-filtered output. UV performance, exact cartridge revision and cabinet-fit dimensions remain unsettled.

Capacity and footprint: one conflict resolved, another still open

Waterdrop lists it in the electric-water-filter-pitcher collection while calling it a UV countertop purifier/dispenser. The manual describes a water tank, pump assembly and button outlet: fill it manually, then dispense with the powered pump. It does not gravity-feed into a lower chamber or pour from a handle. This suits someone who wants a large shared supply without lifting and tipping the vessel, but adds charging and electrical parts absent from a passive pitcher.

For capacity, the exact record's “20 cups” tag conflicts with the detailed 22-cup product specification and collection entry. The model-specific WD-ED09W manual also lists 22 cups / 5.3 L, so I use 22 for this system's stated tank capacity rather than treating the stale tag as the stronger specification. This still does not guarantee 22 cups of immediately filtered water from a single fill. The manual rates flow up to 0.18 GPM and sets a one-time flush-and-discard routine before drinking.

The manual gives 10.8 × 8.7 × 11.3 inches (L × W × H), while Waterdrop's product page lists 31.8 × 26.1 × 34.6 cm without labeling the axes; those measurements do not convert to the manual's values. I leave height, width and length unconfirmed for strict shelf matching. The product page lists 9.92 pounds, and describes a 304 stainless-steel body. Check the physical unit or get the current dimensional specification before planning a tight cabinet fit.

What the manual changes about ownership

The exact-model manual specifies municipal tap water, a 33–101°F operating range, 5,000 mAh battery, 5 W power and 5 V / 2 A USB-C charging. Its “up to 30 days” battery figure was tested at 77°F while dispensing 22 cups per day; frequent use or colder/refrigerator operation shortens runtime. The warranty section is narrower than the headline temperature range: it lists 33–100°F working conditions, feed-water pH 6.5–8.5, turbidity below 1.0 NTU and TDS below 500 ppm. It says well water should first be prefiltered. These restrictions make this a potable-water convenience filter, not a way to make unsafe or unknown-quality source water safe.

At first use or after replacing a cartridge, the manual says to flush the filter and discard the first full tank. Brush the tank monthly to limit scale, avoid organic solvents such as alcohol, and if the unit sits unused for more than seven days, empty it, refrigerate the removed cartridge and discard the first cup after restarting. The manual also says the UV icon appears only during dispensing and a flashing blue filter indicator means the cartridge is flushing; that water should not be drunk. These are useful status instructions, not evidence that UV treatment reaches a tested efficacy or provides a safety barrier.

Do not turn UV marketing into a treatment guarantee

Waterdrop markets five-stage filtration, a UV feature and broad reductions, with a bacteria-removal statement in the product metadata. The manual's indicator description does not identify organisms, test conditions or an independent result, and I found no ED09W-specific performance data sheet. That evidence does not establish a verified microbial or lead-reduction match. Do not select the ED09W instead of an appropriate treatment for microbiologically unsafe water. If a documented bacteria, virus, cyst or lead reduction is essential, choose a model whose exact system-and-filter data support that requirement.

Confirm the replacement before relying on its service cycle

The exact manual names WD-EWFLY and lists up to 80 gallons; Waterdrop's ED09W page and replacement materials also describe an 80-gallon / three-month service limit. A separate current WD-EWFLL listing also names ED09W as compatible, however. The exact route or revision relationship is not reconciled, so the matcher does not treat either suffix as the only supported replacement choice. Check the label on the supplied filter or ask Waterdrop before ordering; do not substitute a similar-looking WD-EDF, WD-EDFX or gravity-pitcher cartridge. The first included cartridge still needs the same flush and discard routine as a replacement.

Who should shortlist it—and what should change the answer?

The ED09W can suit a household with already potable municipal water that prefers button dispensing, wants a listed 22-cup tank and accepts charging, manual-directed care and unresolved cartridge/dimension questions. A 22-cup capacity need now includes it; selecting gravity dispensing excludes it. Selecting a maker-listed UV feature can surface it for comparison, but adding essential microbial or lead reduction must remove it because no model-specific tested result is established. A strict shelf-height need should also exclude it until the dimension mismatch is resolved.

Compare the ED21W if you want another stainless, powered Waterdrop format without making the ED09W's UV feature central; its own review documents a different filter-route uncertainty. The ED11W is a smaller 15-cup electric system with a clearer WD-EWFLY route, although its filter-life sources conflict. A gravity pitcher avoids charging and powered dispensing altogether. Each has its own limits: compare exact capacity, filter identity and substantiated reduction results rather than stage count or UV wording alone.

This review uses Waterdrop's exact US product record, ED09W page, electric-pitcher collection and replacement-filter listings, plus the Waterdrop Product User Manual for model WD-ED09W (44-page multilingual document displayed by ManualsLib). The manual supports operation and tank specifications, but it is not a contaminant performance sheet. No independent water testing, personal ownership or verified UV efficacy is claimed.

Sources: Waterdrop ED09W product page; Waterdrop electric-pitcher collection; Waterdrop WD-ED09W Product User Manual (reproduced document); WD-EWFLY replacement listing; WD-EWFLL replacement listing.
